What is the router-on-a-stick method, and how do subinterfaces work?

Router-on-a-stick uses a single physical router interface divided into multiple software-based subinterfaces, each assigned to a different VLAN (Virtual Local Area Network) via 802.1Q encapsulation.

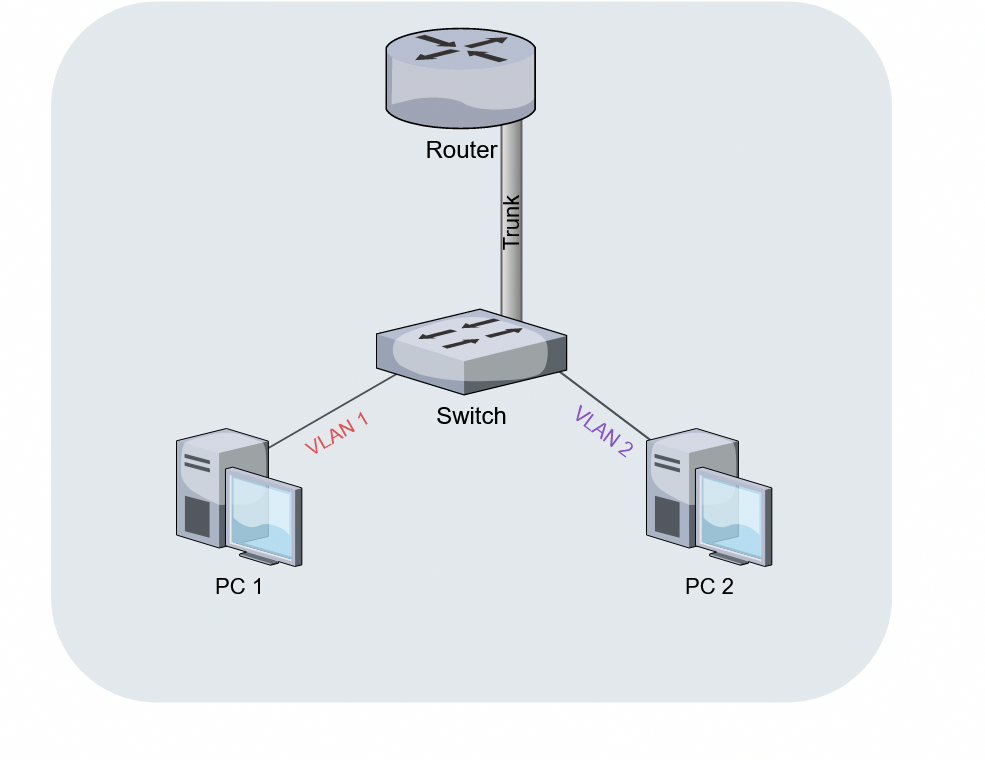

* Router-on-a-stick over a single trunk link. — Anatoly099, CC BY-SA 4.0, via Wikimedia Commons. *

Key concepts:

• The router's physical interface connects to the switch via an 802.1Q trunk link
• The trunk carries tagged traffic from multiple VLANs over one cable
• On the router, subinterfaces are created — virtual interfaces that each handle one VLAN

How subinterfaces work:

• Each subinterface is configured with encapsulation dot1q <vlan-id> to match a VLAN
• Each gets its own IP (Internet Protocol) address, which becomes the default gateway for that VLAN
• Traffic arrives tagged → router reads the VLAN tag → routes to the correct subinterface → re-tags with the new VLAN → sends back out the same physical interface

* The tag → route → re-tag path: every inter-VLAN frame enters and leaves over the one physical interface. *

Limitations:

• Does not scale beyond ~50 VLANs (all traffic funnels through one physical link)
• The single link becomes a bandwidth bottleneck
• Higher latency than Layer 3 switching

Tip: The name "router-on-a-stick" literally describes it — one router hanging off one stick (cable) doing all the inter-VLAN work.
