What are OVSF codes and how does the OVSF tree generate orthogonal channelization codes?

OVSF (Orthogonal Variable Spreading Factor) codes are generated from a binary tree structure where each level doubles the code length (and halving the data rate), ensuring all codes at any level are orthogonal to each other.

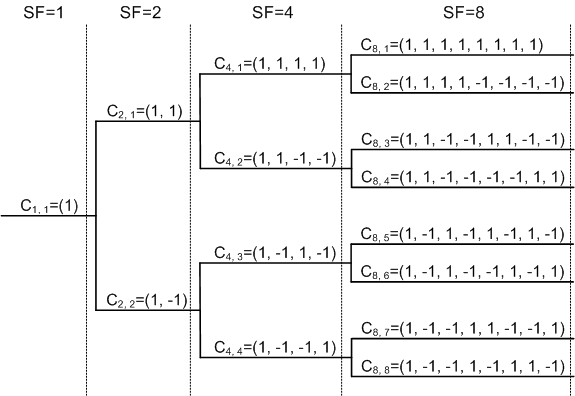

* OVSF tree generating orthogonal spreading codes. — Pplecke, CC BY-SA 3.0, via Wikimedia Commons. *

The OVSF tree:

SF=1:  (1)
        ├── SF=2:  (1,1)
        │          ├── SF=4:  (1,1,1,1)
        │          └── SF=4:  (1,1,-1,-1)
        └── SF=2:  (1,-1)
                   ├── SF=4:  (1,-1,1,-1)
                   └── SF=4:  (1,-1,-1,1)

SF = Spreading Factor:

• SF=1: 1 chip per bit → highest data rate, only 1 code available
• SF=2: 2 chips per bit → half data rate, 2 codes available
• SF=4: 4 chips per bit → quarter data rate, 4 codes available
• In UMTS, SF ranges from 4 to 512

Code properties:

• Each code is a vector of +1 and -1 values (chips)
• Code elements: c_i ∈ {+1, -1}
• Any two codes at the same SF level are orthogonal (their dot product = 0)
• Constraint: if a code is in use, its parent and children codes cannot be used simultaneously (they wouldn't be orthogonal)

Variable data rates: A user needing high data rate gets a short code (low SF), while a user needing only voice gets a long code (high SF). Both share the same spectrum simultaneously. This flexibility is a major advantage of CDMA over fixed-slot TDMA.
